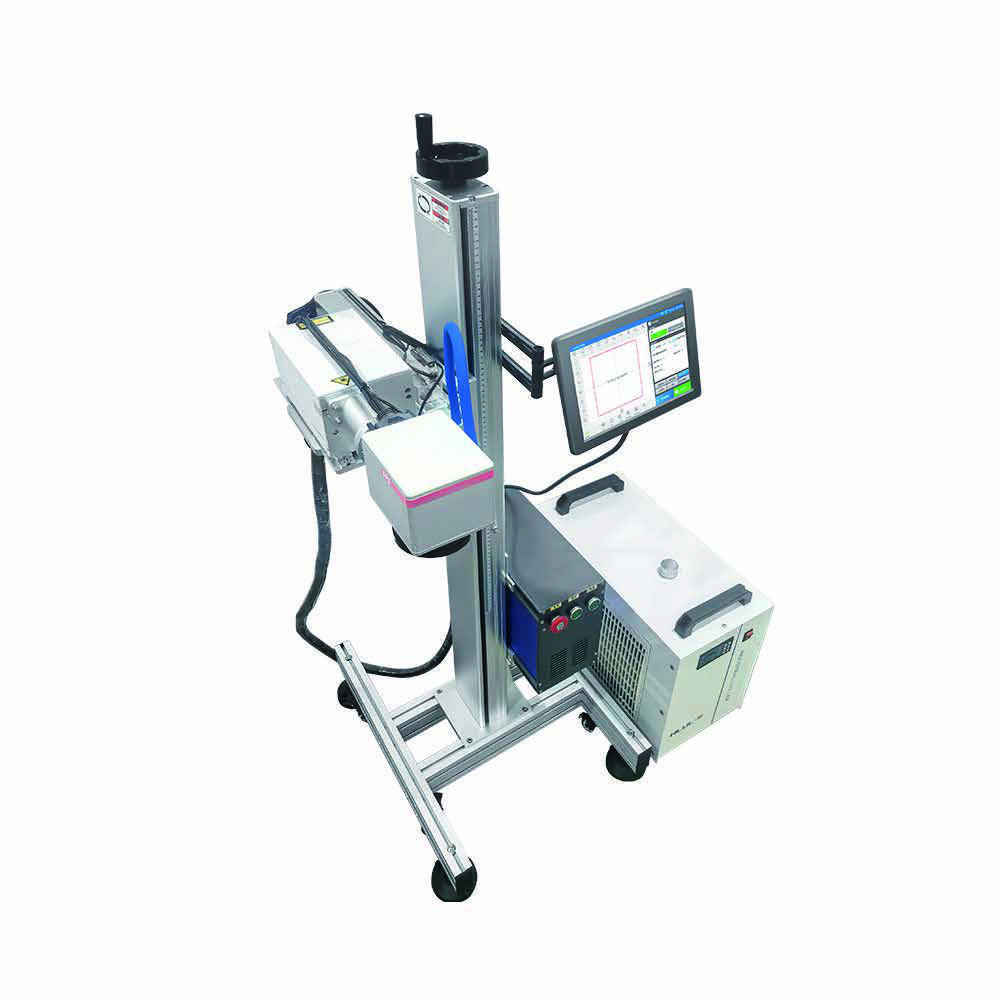

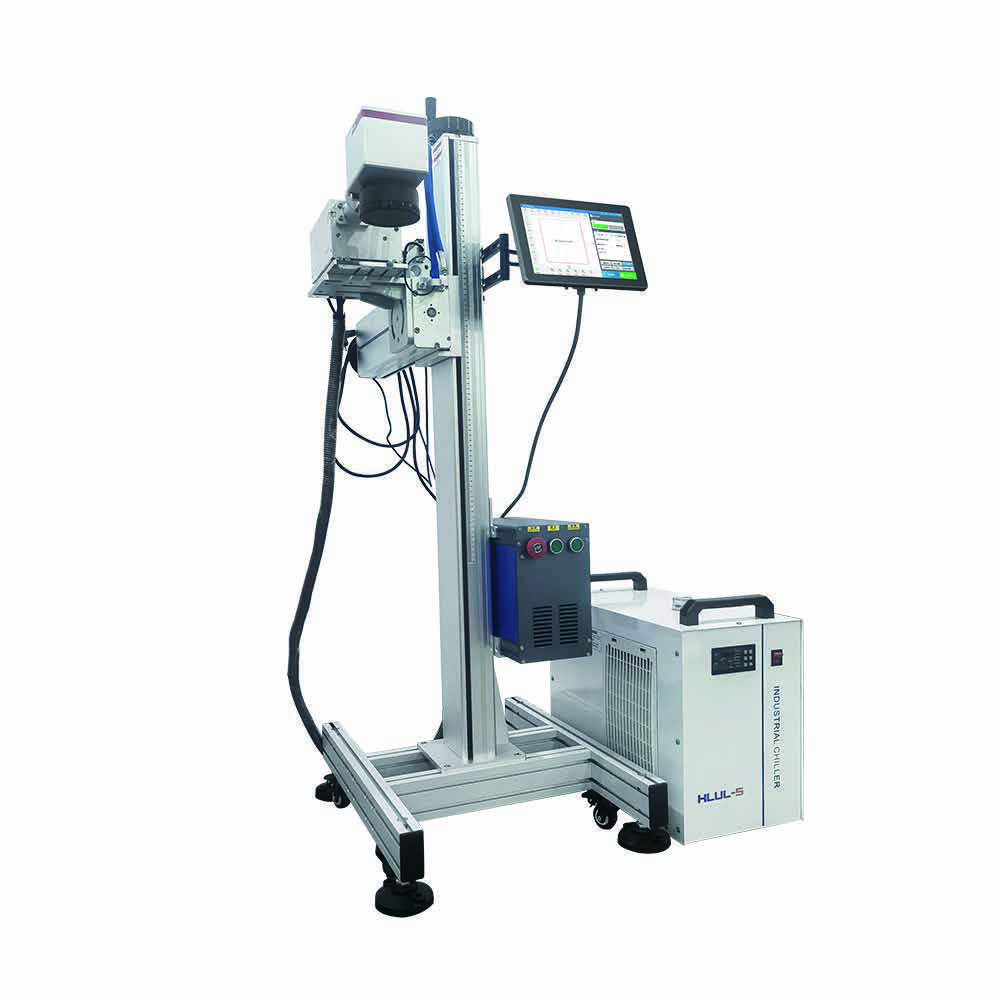

WLD-UV (5W) Laser Marking Machine
| Laser wavelength | 355nm |
| Print speed | 300m/min |
| Camera rotation | 360°rotation |

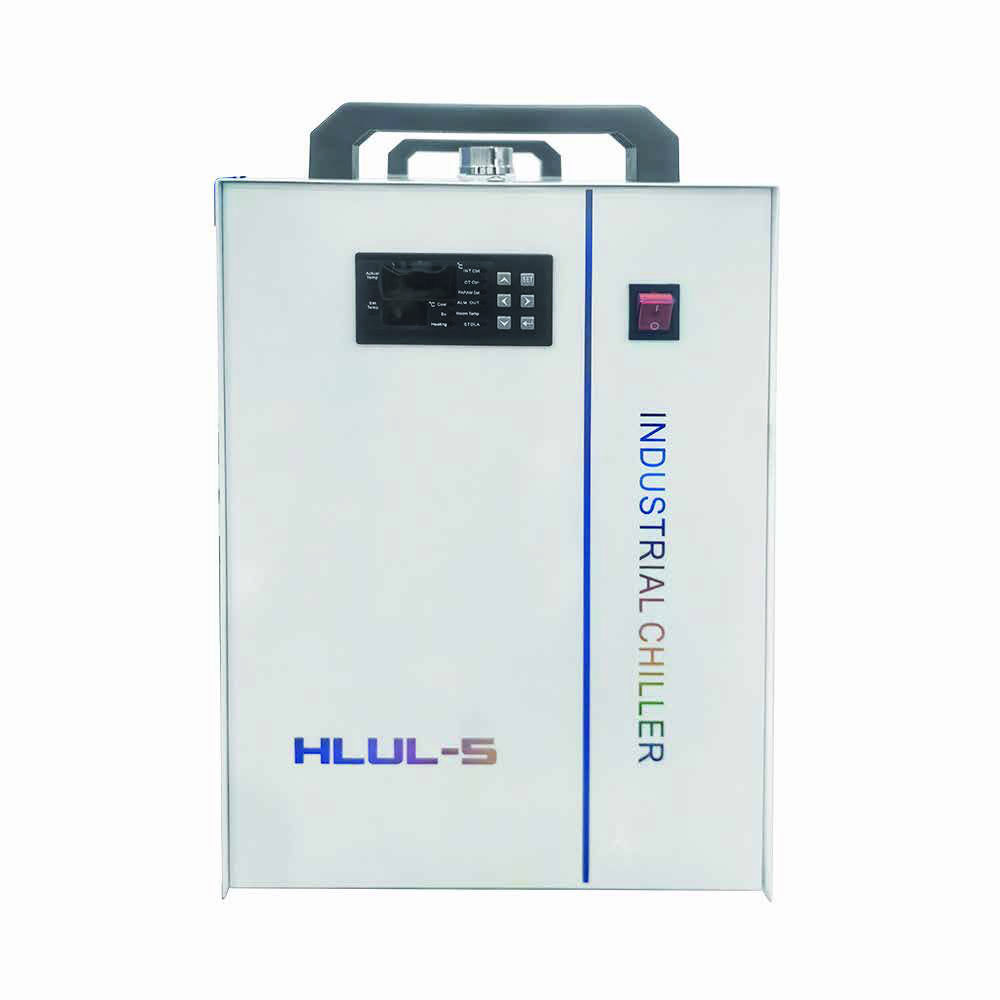

| Cooling system | Water cooling |
| Screen size | 10.3-inch intelligent touch screen |
| Focusing on the system | Double red light autofocus |
| Total power | 800W |
| Import format | JPG 、BMP、PNG |
| Lens system | Standard configuration: 110 field lenses, 4x light speed extender |
| Minimum line width | 0.03mm |
| Repetitive expression | Precision：0.002mm |
| Marking range | Standard: 110 × 110 millimeters, optional range of 70-300 millimeters |
Key specifications – Print speed: 300m/min; Laser wavelength: 355nm.
